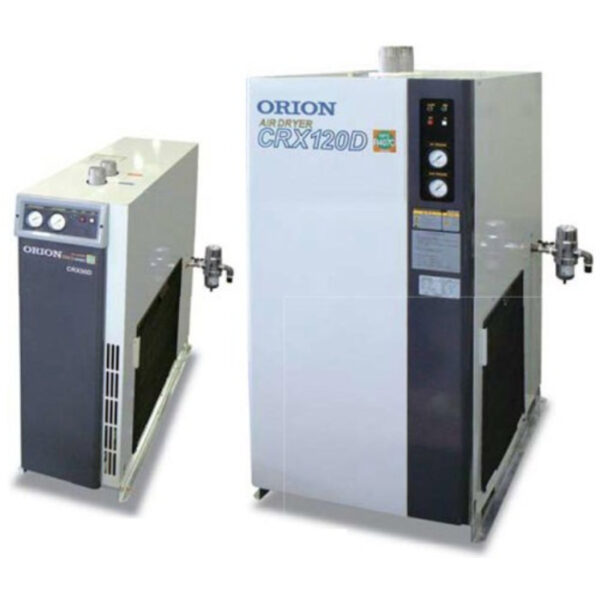

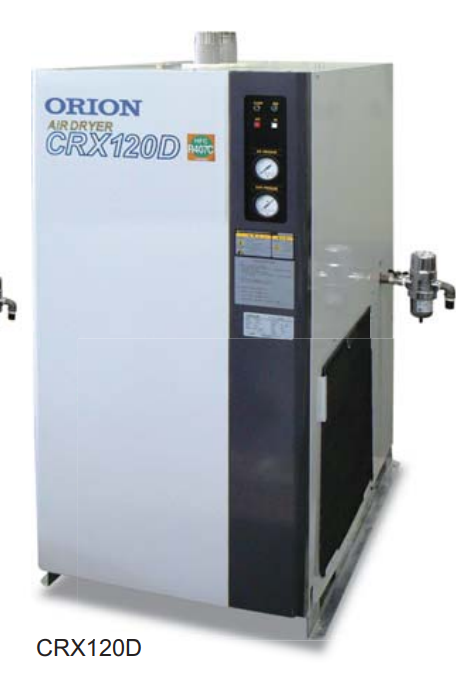

The Orion CRX120D Refrigerated Air Dryer provides reliable moisture removal with a capacity of approximately 12 m³/min, operating at pressures from 0.2 to 0.98 MPa. Built for heavy-duty industrial use, it features a stainless steel heat exchanger and cross-wave fin technology, ensuring low pressure loss and compatibility with oil-free compressors.
Robust 12 m³/min air dryer with stainless steel heat exchanger for industrial air sy
Benefits: Low pressure loss saves energy, Durable stainless steel construction, and Ideal for oil-free compressor systems.
Usage Tips: Install with Orion Clean Air Filters for best performance; maintain auto drain trap regularly.
Support: Contact us for installation support or manuals.
The Orion CRX120D Refrigerated Air Dryer provides reliable moisture removal with a capacity of approximately 12 m³/min, operating at pressures from 0.2 to 0.98 MPa. Built for heavy-duty industrial use, it features a stainless steel heat exchanger and cross-wave fin technology, ensuring low pressure loss and compatibility with oil-free compressors.
| Air Capacity | ~12 m³/min |
|---|---|
| Pressure Range | 0.2–0.98 MPa |
| Inlet Air Temp | 10°C–80°C |
| Ambient Temp | 2°C–43°C |
| Dew Point | -17°C (atmospheric), 10°C (under pressure) |
| Refrigerant | R407C |
